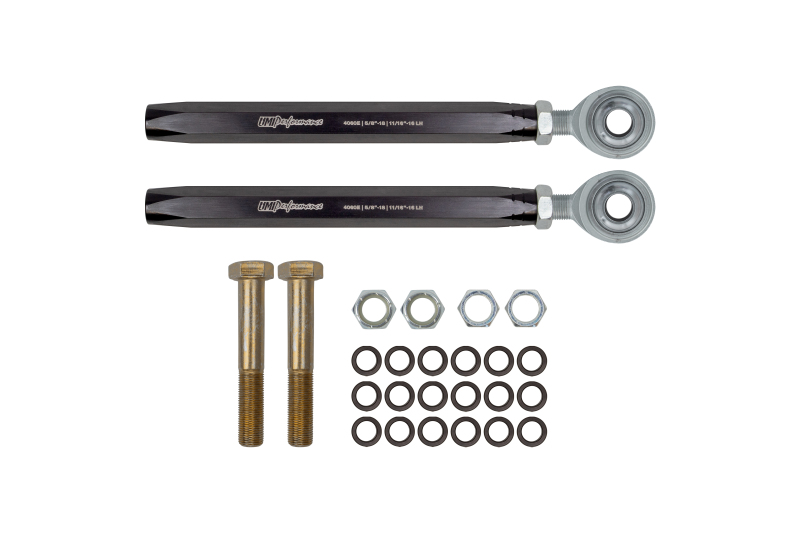

UMI Performance 71-72 GM A-Body Bump Steer Adjuster Kit
SKU 4060-1
MPN umi4060-1
$169.99 · Available to order
UMI Performance 71-72 GM A-Body Bump Steer Adjuster Kit
UMI’s 4060-1 GM A-body bump steer kit (1971-1972) is designed to reduce or eliminate toe change during suspension travel (bump steer). This improves handling, straight line stability, and overall precision of the steering system. The kit includes a heavy-duty 5/8″ bolt for the outer tie rod stud to increase strength over the factory tapered design. The adjuster is made of 6061-T6 Aluminum hex for lightweight strength and features a hard anodized protective finish. Shims of 0.125”, 0.1875” and 0.250” are included in the kit. These bump steer kits have been race-tested and are proudly designed and manufactured in Philipsburg, PA, USA. Note: Spindle drilling is required to accept the 5/8″ adjustment bolt. Once drilled, the spindle cannot be returned to the factory taper. For the 1971-1972 GM A Body, the kit uses the factory inner tie rod. If replacement is required, use Proforged 104-10016 or an equivalent, (2) are required. Bump steer adjustment tools and theory can be found at longacreracing.com.
| Years | Make | Model | Submodel | Drive |
|---|---|---|---|---|
| 1971 | Pontiac | GTO | The Judge | — |
| 1972 | Buick | Skylark | 350 | — |
| 1971 | Oldsmobile | 442 | Base | — |
| 1971–1972 | Oldsmobile | Cutlass | S | — |
| 1971–1972 | Buick | Skylark | Base | — |
| 1971–1972 | Chevrolet | Chevelle | Base | — |
| 1971–1972 | Chevrolet | Chevelle | Malibu | — |
| 1971–1972 | Chevrolet | Chevelle | Concours | — |
| 1971–1972 | Pontiac | GTO | Base | — |
| 1971–1972 | Chevrolet | Chevelle | Concours Estate | — |
| 1971–1972 | Chevrolet | Chevelle | Greenbrier | — |
| 1971–1972 | Buick | Skylark | Custom | — |
| 1972 | Oldsmobile | Cutlass | Cruiser | — |
| 1971–1972 | Chevrolet | El Camino | SS | — |
| 1971–1972 | Oldsmobile | F85 | Base | — |
| 1972 | Pontiac | LeMans | Luxury | — |
| 1971–1972 | Chevrolet | Monte Carlo | Base | — |
| 1971–1972 | Pontiac | LeMans | Base | — |
| 1971–1972 | Chevrolet | Chevelle | Nomad | — |
| 1971–1972 | Chevrolet | El Camino | Custom | — |
| 1971–1972 | Chevrolet | El Camino | Base | — |
| 1971–1972 | Chevrolet | Chevelle | SS | — |
| 1971 | Pontiac | LeMans | T37 | — |
| 1971–1972 | Oldsmobile | Cutlass | Base | — |
| 1971–1972 | Pontiac | LeMans | Sport | — |
| Category | Suspension |
|---|---|
| Sub-Category | Bump Stops |
| UPC | 4060-1 |
| CARB Approved | Yes |
| Prop 65 Warning | Y |
| Special Order | Yes |
| Weight | 4 lb |
| Dimensions (L×W×H) | 12 × 4 × 4 in |
