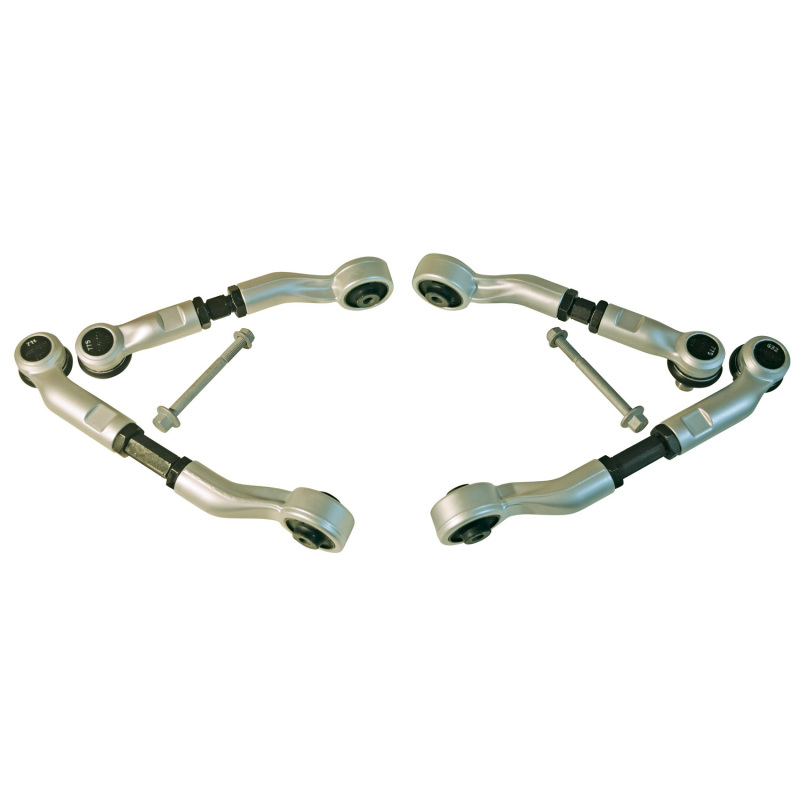

SPC Performance 98-08 Audi A4/S4/RS4 / 98-05 VW Passat Front Upper Multi Link Control Arm Kit
SKU 81353
MPN spc81353
$899.93 · Available to order
SPC Performance 98-08 Audi A4/S4/RS4 / 98-05 VW Passat Front Upper Multi Link Control Arm Kit
Adjust front camber and caster +-1.5deg on the Audi B5/B6/B7 and C5 platforms with these forged aluminum adjustable control arms from SPC. OE style booted ball joints and bonded rubber bushigns maintain factory ride, handling and noise, vibration, & harshness (NVH) parameters. Audi's unique multi-link suspension creates a 'Virtual' SAI. The factory does not publish a specification for caster, but SPC recommends 5deg to 6deg of caster as a preferred angle for tracking and return to center on these cars. This kit includes four arms to replace both upper links on both sides of the vehicle. For the left hand (LH) side, use #81351. For the right hand (RH) side, use part number #81352. SPC Arms Feature: Forged 6061-T6 Aluminum construction for maximized strength at a minimum weight OE style, maintenance free, booted ball joints Large 18mm threaded adjuster links Replacement pinch bolts included Need to replace the ball joint boots on these arms? We have replacement kits available! Part No. 81354. California Residents WARNING
| Years | Make | Model | Submodel | Drive |
|---|---|---|---|---|
| 1998–2005 | Volkswagen | Passat | GLX | — |
| 2008 | Audi | S5 | Base | — |
| 1998–2005 | Volkswagen | Passat | GLS | — |
| 2001–2005 | Audi | Allroad Quattro | Base | — |
| 2003–2008 | Audi | A4 | Cabriolet | — |
| 2003 | Audi | RS6 | Base | — |
| 2004–2008 | Audi | S4 | Base | — |
| 2004–2005 | Volkswagen | Passat | GLS TDI | — |
| 2001–2002 | Volkswagen | Passat | GLS 4 Motion | — |
| 2008 | Audi | RS4 | Cabriolet | — |
| 1998 | Audi | A4 | Avant | — |
| 2002–2003 | Audi | S6 | Avant | — |
| 2002–2004 | Volkswagen | Passat | W8 | — |
| 2008 | Audi | A5 Quattro | Base | — |
| 2004–2008 | Audi | A4 Quattro | Cabriolet | — |
| 2004–2008 | Audi | S4 | Avant | — |
| 1998–2008 | Audi | A4 Quattro | Base | — |
| 2003–2005 | Volkswagen | Passat | GL | — |
| 2007–2008 | Audi | RS4 | Base | — |
| 1998–2008 | Audi | A4 | Base | — |
| 1998–2004 | Audi | A6 Quattro | Base | — |
| 2004–2008 | Audi | S4 | Cabriolet | — |
| 2004–2005 | Volkswagen | Passat | GLS 4 Motion | — |
| 1998–2004 | Audi | A6 Quattro | Avant | — |
| 1998–2008 | Audi | A4 Quattro | Avant | — |
| 2000–2002 | Audi | S4 | Base | — |
| 2004–2005 | Volkswagen | Passat | GL TDI | — |
| 2001–2005 | Volkswagen | Passat | GLX 4 Motion | — |
| 2000 | Volkswagen | Passat | 4 Motion | — |
| 2001–2002 | Audi | S4 | Avant | — |
| 1998–2004 | Audi | A6 | Base | — |
| Category | Suspension |
|---|---|
| Sub-Category | Control Arms |
| UPC | 082642813538 |
| CARB Approved | Yes |
| Prop 65 Warning | Y |
| Special Order | Yes |
| Weight | 8.3 lb |
| Dimensions (L×W×H) | 15.1 × 6.6 × 3.4 in |
